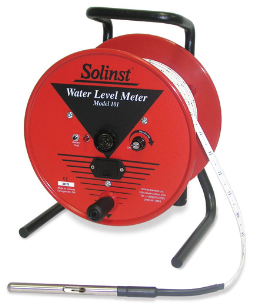

Solinst Model 101 Water Level Meter
For measuring the depth to water in wells, boreholes, standpipes, and tanks, Model 101 Water Level Meters are the industry standard for portable hand operated meters. They are sturdy, easy to use and read accurately to 1/100 ft. or each millimeter.
There are two versions to choose from:
The Model 101 P7 Water Level Meter features a pressure-proof probe rated to 500 psi and laser marked PVDF flat tape.
The Model 101 P2 Water Level Meter features an easy-to-repair probe and heat embossed polyethylene flat tape.
The NEW Solinst 101 Water Level Meter with P7 Probe features an extremely durable, laser marked PVDF flat tape, with an enhanced dog bone design that is thicker, reducing adherence to the side of well casing.
The PVDF flat tape is laser marked every 1/100 ft or each mm; lengths up to 6000 ft (1800 m). New flat tape has increased tensile strength and electrical efficiency by using 6 strands of copper coated stainless steel and 13 strands of stainless steel in each conductor. The P7 Water Level Meter Probe is engineered to allow submersion to 1000 ft. (300 m), replacing the 101 P6 Submersible Probe. Sensor at the tip of the probe provides consistently accurate measurements in wells, boreholes, and cascading water, with almost zero displacement.
Measuring the depth to water in wells, boreholes, standpipes, and tanks.
- Markings each 1/100 ft. or millimeter.
- Certified Traceable to National Standards.
- Sensitivity adjustable to conductivity.
- Probes avoid false readings in cascading water.
New P7 Submersible Probe measures water levels and total well depth.
More consistent measurements with sensor located at the tip of probe.
- New PVDF flat tape has increased tensile strength and electrical efficiency.
- Permanent laser markings.
- Durable PVDF non-stretch tape.
- Improved electrical properties.
- Rugged, corrosion proof components.
- Strong, flexible tapes.
- Easy to splice and repair.
PVDF replacement tapes are interchangeable with other meters.
Thicker dog bone design prevents clinging to sides of the well.
Permanently laser marked every 1/100 ft or each mm.
P7 or P2 probe options.
Different tape length is available.
